503 Iron Tank Electric Ash Vacuum Cleaner for fireplace BBQ

503 Iron Tank Ash Vacuum Cleaner for fireplace BBQ

Feature
with blowing function


Standard accessories
1 suction hose
1 Aluminum tube
1 HEPA/Filter bag
Availability:
Quantity:
sharethis sharing button
  • MWA503

  • WISE

  • 8508110000


Product Overview

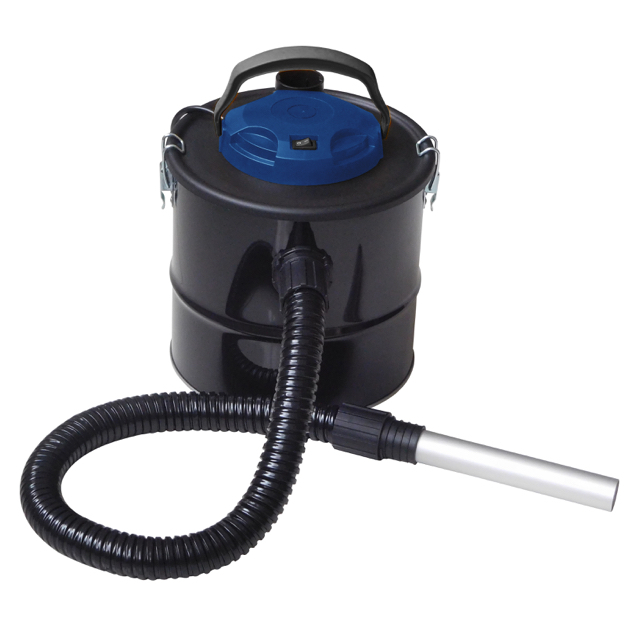

The 503 Iron Tank Electric Ash Vacuum Cleaner from Wise Mechanic is designed for simple and direct removal of ash from fireplaces and BBQ grills. The electric Ash Vacuum Cleaner runs on 100–240V, 50/60 Hz and offers 500W to 800W power options to meet different cleaning needs. The iron tank is available in 10L, 11L, 12L, and 15L capacities, giving users practical choices for small or large cleanup tasks. The unit handles cold ash safely and helps keep heating areas clean with minimal effort. Ash Vacuum Cleaner's structure supports steady suction and easy disposal, making it a useful tool for routine home or outdoor maintenance.


Model

MWA503

Rating

100-240V~ 50/60 Hz

Power

500W/600W/700W/800W

Tank size

10L/11L/12L/15L


Key Features


The 503 Iron Tank Electric Ash Vacuum Cleaner from Wise Mechanic includes a blowing function that supports both cleaning and light debris removal. The blowing mode helps move loose ash from corners and narrow spaces, which allows the user to collect it with steady control. The unit works with cold ash and keeps the process contained, which reduces mess during cleaning. Its simple structure supports direct operation, and the iron tank design offers dependable storage for collected ash. The feature set aims to make routine fireplace and grill care easier and more controlled without complex steps.



Use Cases


This ash vacuum cleaner serves many heating and cooking setups, making it useful in homes and outdoor areas. It can remove ash from wood-fired ovens, pellet grills, and charcoal grills, where residue builds up after each use. It also works well with fireplaces, fire pits, and indoor hearth products that produce ash during regular burning. The vacuum helps keep these areas clear so users can prepare surfaces for the next fire or cooking session. Its focused function supports safe and consistent ash handling, which helps maintain airflow, heat output, and general cleanliness in these common fire-based tools.

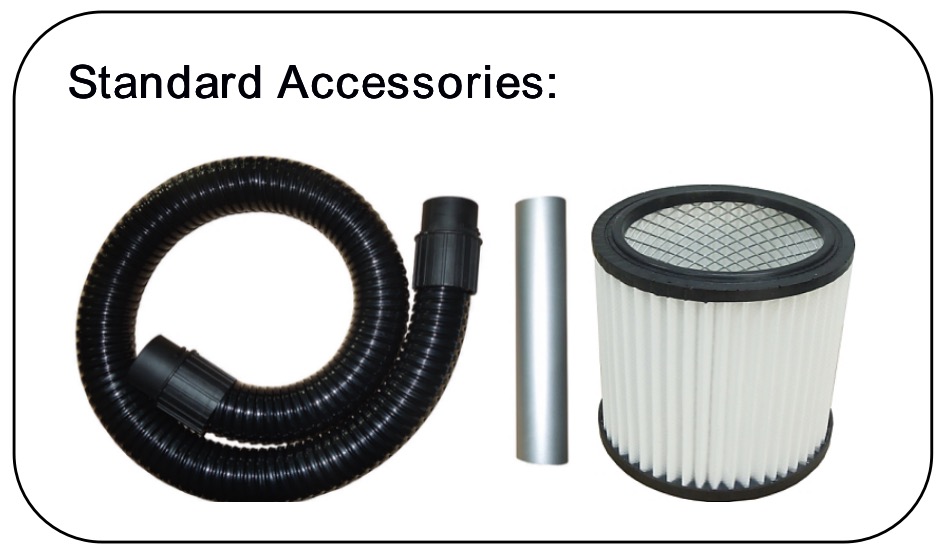

Standard Accessories


Suction Hose


The suction hose connects the vacuum body to the cleaning point and allows steady ash intake during use. Its length supports flexible movement around fireplaces, grills, and pits. It also helps guide ash directly into the tank, which keeps the work area controlled and reduces handling steps.



Aluminum Tube


The aluminum tube extends the user’s reach and gives a firm pathway for ash to travel during operation. It works well near fire chambers where heat may remain, as the tube supports safe contact with cooler ash. Its simple structure helps users direct suction into tight or deep spaces.



HEPA / Filter Bag


The HEPA or filter bag holds fine ash and keeps it from escaping back into the air during cleaning. It supports cleaner operation by trapping small particles inside the tank. This component also helps protect the motor from dust buildup, which maintains steady performance over repeated cleaning tasks.



standard accessories


FAQ


What types of ash can this vacuum handle?

The vacuum is designed for cold ash from fireplaces, wood-fired ovens, pellet grills, charcoal grills, and fire pits. It should not be used on hot ash to protect the filter and internal parts.



What filter options are available for this model?

The unit supports a HEPA filter or a filter bag. Both options help trap fine ash and keep particles from returning to the air during cleaning.



How long is the hose and power cord?

The vacuum includes a 1-meter suction hose and a 2-meter power cord. This setup allows users to reach most fireplaces and grills without frequent repositioning.




The 503 Iron Tank Electric Ash Vacuum Cleaner operates on 230 V, 50 Hz and uses a 600W input power system, with a real working output of 500W. It delivers a vacuity of 15 KPa or higher, which supports steady ash pickup in fireplaces and grills. The unit includes a 1-meter hose with a 30 mm diameter, along with a 200 mm aluminum tube for direct reach. The iron tank has a 0.4 mm wall thickness and comes in black, offering solid containment for collected ash. Users can choose a HEPA filter or a filter bag, and the 2-meter power cord allows simple movement around the cleaning area.


Certificate Model Photo Technical Data Feature

Packing &

Container loading

CE

MWA503C-*L-600W

* can be 10L,11L,12L,15L

OR

Mains: 230 V ~ 50 Hz

Input power: 600W(Real 500W)

Vacuity: ≥15KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Suction hose diameter: 30mm

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: HEPA or Filter bag

Power cord length:2m

With blowing function

10L:1pc/carton

size: 265*265*278mm

1343pcs/20FCL

2816pcs/40FCL

3519pcs/40HQ

11L:1pc/carton

size: 265*265*301mm

1331pcs/20FCL

2795pcs/40FCL

3259pcs/40HQ

12L:1pc/carton

size: 265*265*322mm

1259pcs/20FCL

2640pcs/40FCL

3166pcs/40HQ

15L:1pc/carton

size: 265*265*392mm

1048pcs/20FCL

2198pcs/40FCL

2495pcs/40HQ

CE

MWA503C-*L-800W

* can be 10L,11L,12L,15L

OR

Mains: 230 V ~ 50 Hz

Input power: 800W(Real 700W)

Vacuity: ≥15KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Suction hose diameter: 30mm

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: HEPA or Filter bag

Power cord length:2m

With blowing function

10L:1pc/carton

size: 265*265*278mm

1343pcs/20FCL

2816pcs/40FCL

3519pcs/40HQ

11L:1pc/carton

size: 265*265*301mm

1331pcs/20FCL

2795pcs/40FCL

3259pcs/40HQ

12L:1pc/carton

size: 265*265*322mm

1259pcs/20FCL

2640pcs/40FCL

3166pcs/40HQ

15L:1pc/carton

size: 265*265*392mm

1048pcs/20FCL

2198pcs/40FCL

2495pcs/40HQ

GS & CE

MWA503G-*L-600W

* can be 10L,11L,12L,15L

Mains: 230 V ~ 50 Hz

Input power: 600W(Real 500W)

Vacuity: ≥15KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Suction hose diameter: 30mm

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: Small metal pre-filter  + Dacron type filter bag

Power cord length:2m

With blowing function

10L:1pc/carton

size: 265*265*280mm

1343pcs/20FCL

2816pcs/40FCL

3519pcs/40HQ

11L:1pc/carton

size: 265*265*303mm

1319pcs/20FCL

2767pcs/40FCL

3255pcs/40HQ

12L:1pc/carton

size: 265*265*324mm

1238pcs/20FCL

2596pcs/40FCL

3078pcs/40HQ

15L:1pc/carton

size: 265*265*394mm

1048pcs/20FCL

2198pcs/40FCL

2489pcs/40HQ

GS & CE

MWA503G-*L-800W

* can be 10L,11L,12L,15L

Mains: 230 V ~ 50 Hz

Input power: 800W(Real 700W)

Vacuity: ≥15KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Suction hose diameter: 30mm

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: Small metal pre-filter  + Dacron type filter bag

Power cord length:2m

With blowing function

10L:1pc/carton

size: 265*265*280mm

1343pcs/20FCL

2816pcs/40FCL

3519pcs/40HQ

11L:1pc/carton

size: 265*265*303mm

1319pcs/20FCL

2767pcs/40FCL

3255pcs/40HQ

12L:1pc/carton

size: 265*265*324mm

1238pcs/20FCL

2596pcs/40FCL

3078pcs/40HQ

15L:1pc/carton

size: 265*265*394mm

1048pcs/20FCL

2198pcs/40FCL

2489pcs/40HQ
