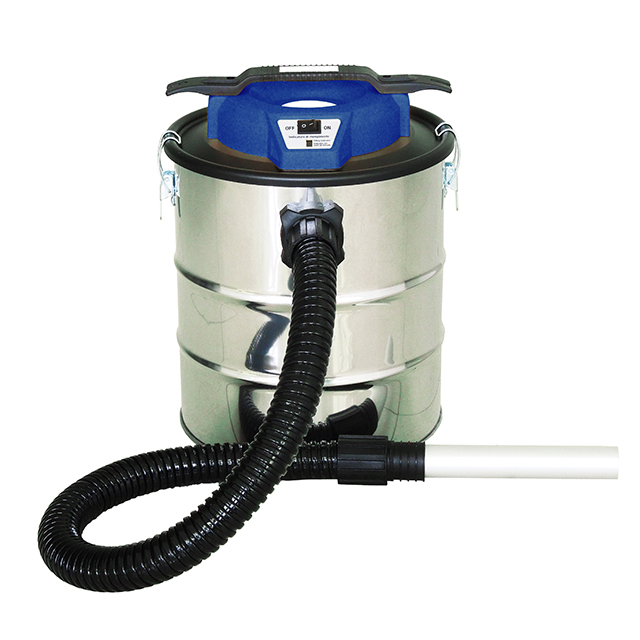

401-1200W Iron/stainless Steel Tank Electric Ash Vacuum Cleaner with Wheels

401-1200W Iron/stainless Steel Tank Electric Ash Vacuum Cleaner with Wheels

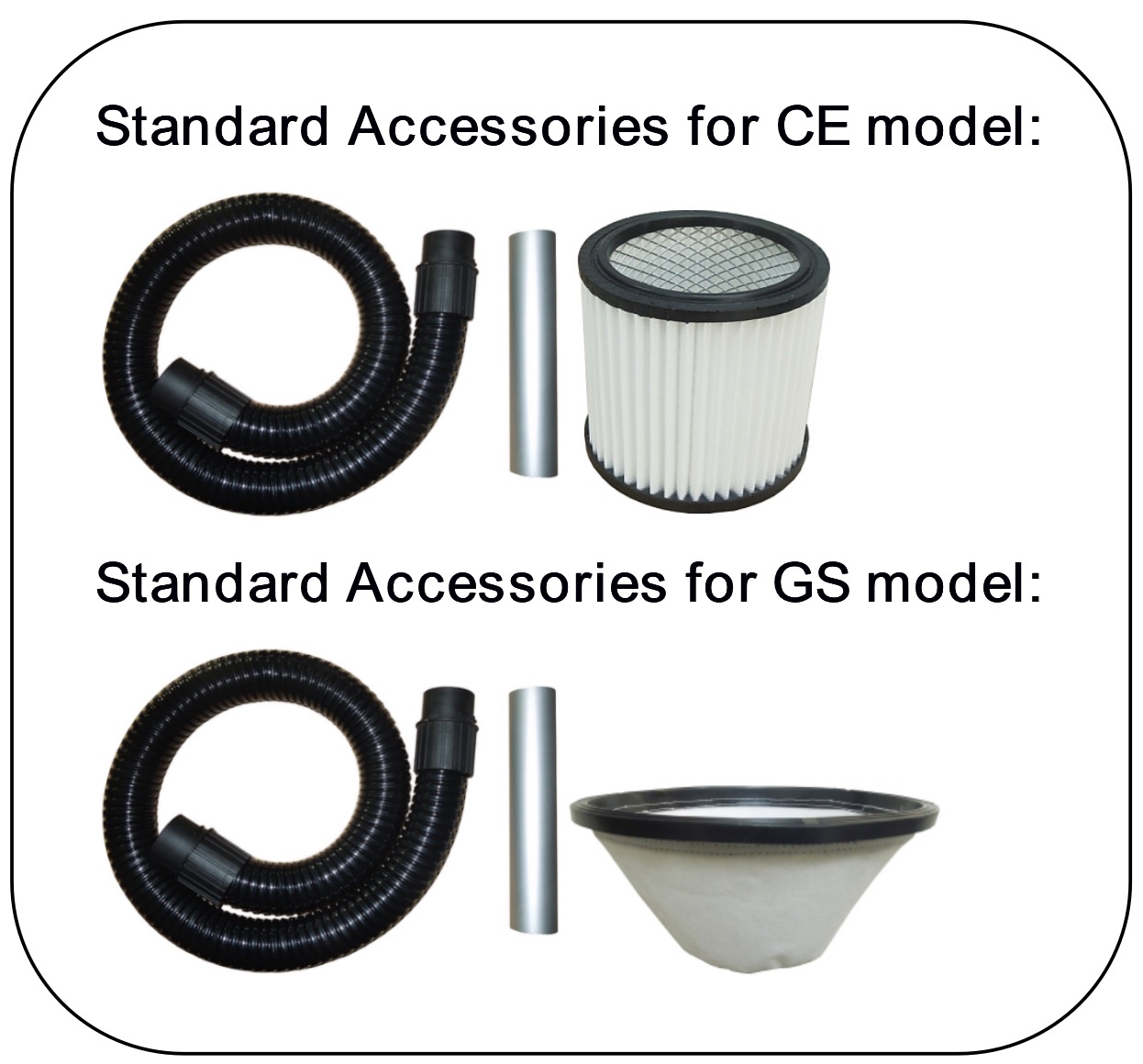

Standard accessories
1 suction hose
1 Aluminum tube
Small metal filter basket + Dacron type filter bag/HEPA
Tank size 15L/18L/20L
Power 700W/800W/1000W/1200W
Availability:
Quantity:
sharethis sharing button
  • MWA401C / MWA401G

  • WISE

  • 8508110000


Product Overview


As a professional electric ash vacuum cleaner designed for both residential and commercial ash-cleaning needs, the 401 Series from Suzhou Wise Mechanic Electric Appliance Co., Ltd. combines durability, power, and user-friendliness. Crafted with a robust iron or stainless steel tank (0.4mm thickness) and available in multiple capacities (12L/15L/18L/20L/23L), this vacuum is engineered to handle dry ash from fireplaces, BBQ grills, wood stoves, and more.


Powered by a high-performance motor with options ranging from 700W to 1200W, it delivers strong suction (vacuity ≥14KPa to ≥18KPa, depending on the model) to efficiently remove fine and coarse ash without scattering. Equipped with either a HEPA filter (for MWA401C models) or a small metal filter basket + Dacron type filter bag (for MWA401G models), it ensures minimal dust leakage, protecting indoor air quality. With global certifications including CE and GS & CE, this product meets strict safety and performance standards, making it a reliable choice for customers worldwide.


401-1200W Iron/stainless Steel Tank Electric Ash Vacuum Cleaner with Wheels


Product Features


Durable & Long-Lasting Construction

Tank Material: Made of high-grade iron or stainless steel (0.4mm thickness), the tank resists corrosion, dents, and high temperatures—critical for handling hot ash residues. Unlike plastic tanks, it avoids warping or cracking, extending the vacuum’s lifespan.

Tank Capacity Options: Available in 12L, 15L, 18L, 20L, and 23L to suit different usage scenarios: 12L–15L for small fireplaces/BBQs, 18L–23L for commercial spaces or large wood stoves.


Powerful Suction Performance

Motor Power Range: Offers four power options—700W, 800W, 1000W, and 1200W (real power matches labeled specs for MWA401C-1200WB and MWA401G-1200WB models).

Vacuum Pressure: Delivers vacuity of ≥14KPa (700W models) up to ≥18KPa (1200W models), ensuring efficient pickup of both fine ash and larger debris (e.g., small wood chips from stoves).


High-Efficiency Filtration System

MWA401C Models: Equipped with a HEPA filter (high-efficiency particulate air filter) that traps 99.97% of particles as small as 0.3 microns, preventing ash from recirculating into the air.

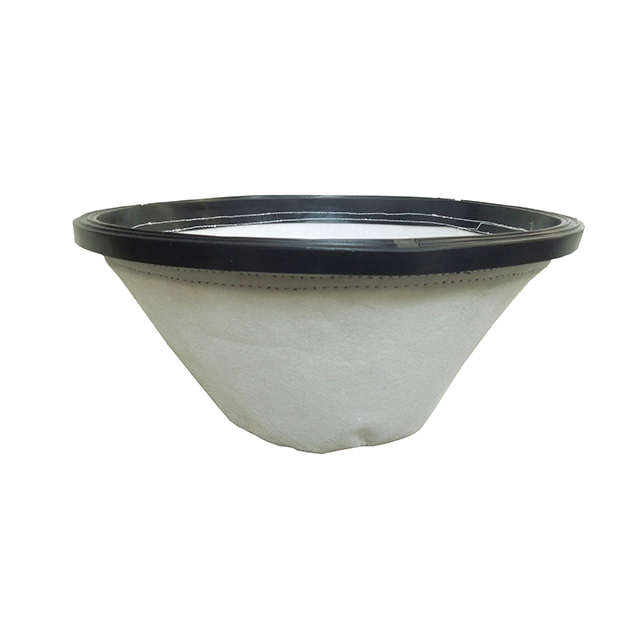

MWA401G Models: Features a small metal filter basket + Dacron type filter bag—the metal basket blocks large debris, while the Dacron bag captures fine ash, making filter maintenance easy and cost-effective.


User-Friendly & Portable Design

Mobility: Optional 3-piece wheels (add-on for USD0.80 per unit) allow easy movement across floors, even when the tank is full. Without wheels, the compact design (e.g., 280280339mm for 15L models) ensures easy storage.

Accessories: Includes 1 1m-long suction hose (30mm diameter) and 1 200mm aluminum tube—flexible enough to reach tight spaces (e.g., behind fireplaces) and durable enough to resist ash abrasion.

Power Cord: 2m-long power cord provides ample reach without frequent plugging/unplugging.


Safety & Certification Compliance

Global Certifications: All models hold CE certification; MWA401G models additionally meet GS & CE standards, ensuring compliance with European safety regulations (e.g., protection against electric shock, overheating).

Heat Resistance: The tank and hose are designed to handle warm ash (up to 60°C), reducing fire risks compared to standard vacuums.


Technical Parameters


General Specifications



Parameter

Details

Brand

WISE

Model Series

MWA401C / MWA401G

Voltage/Frequency

100-240V~ 50/60 Hz (global compatibility)

Power Cord Length

2m

Suction Hose

30mm diameter, 1m length

Aluminum Tube

200mm length

Tank Thickness

0.4mm (iron/stainless steel)

Standard Accessories

1 suction hose, 1 aluminum tube, filtration system



Model-Specific Details

MWA401C (CE-Certified, HEPA Filter)

Power Options:

◦ 800W (real 700W): Vacuity ≥14KPa

◦ 1000WA (real 800W): Vacuity ≥16KPa

◦ 1200WA (real 1000W): Vacuity ≥18KPa

◦ 1200WB (real 1200W): Vacuity ≥18KPa

Packaging & Loading:

◦ 15L: 1pc/carton (280280339mm), 1095pcs/20FCL, 2303pcs/40FCL, 2639pcs/40HQ

◦ 18L: 1pc/carton (282280407mm), 908pcs/20FCL, 1908pcs/40FCL, 2132pcs/40HQ

◦ 20L: 1pc/carton (282282451mm), 838pcs/20FCL, 1762pcs/40FCL, 1972pcs/40HQ

MWA401G (GS & CE-Certified, Metal Basket + Dacron Bag)

Power Options: Same as MWA401C (700W–1200W real power) with identical vacuity ratings.

Packaging & Loading: Identical to MWA401C (no change in carton size or container capacity).

Filter Type: Small metal filter basket + Dacron type filter bag (reusable metal basket, disposable Dacron bag).


Standard accessories


Applications


Residential Use

Fireplaces & Wood Stoves

Ideal for cleaning ash from traditional wood-burning fireplaces, pellet stoves, and coal stoves. The 12L–15L tank (for small homes) or 18L–20L tank (for large fireplaces) captures ash without frequent emptying, and the HEPA/Dacron filter prevents fine dust from triggering allergies.

BBQ Grills & Smokers

Perfect for removing charcoal ash, wood chips, and food residues from outdoor BBQ grills, smokers, and pizza ovens. The heat-resistant tank handles warm ash (post-cooking), and the 1m hose reaches into grill grates and tight corners.

Patios & Outdoor Spaces

Useful for cleaning ash from outdoor fire pits, chimneys, or even ash scattered on patios after fireplace use. The optional wheels make it easy to move between indoor and outdoor spaces.


Commercial & Industrial Use

Restaurants & Cafés

Suitable for cleaning ash from commercial BBQ stations, wood-fired pizza ovens, or small fireplaces in dining areas. The 20L–23L tank reduces downtime from emptying, and CE/GS certifications ensure compliance with commercial safety standards.

Workshops & Garages

Effective for removing ash from metalworking processes (e.g., welding slag), small incinerators, or woodworking shops (sawdust mixed with ash). The stainless steel tank resists industrial debris, and the powerful 1000W–1200W motor handles heavy-duty cleaning.

Hotels & Resorts

Ideal for maintaining fireplaces in lobbies, guest rooms, or outdoor lounge areas. The compact design (e.g., 15L model) is easy to store in housekeeping closets, and the HEPA filter ensures clean air for guests with allergies.


FAQ


Usage & Maintenance

How often should I replace the filter?

• For HEPA filters (MWA401C): Replace every 3–6 months, depending on usage. If the vacuum’s suction weakens or the filter appears discolored (covered in ash), replace it sooner.

• For Dacron filter bags (MWA401G): Dispose of the bag when it’s 2/3 full (overfilling reduces suction). The metal filter basket can be rinsed with water and reused after drying.

Can this vacuum clean wet ash?

No. The 401 Series is designed exclusively for dry ash. Wet ash can clump inside the tank, block the filter, and damage the motor (risk of short-circuiting). Always ensure ash is fully dry before cleaning.

How do I clean the tank after use?

• Empty the ash into a fireproof container (wait 24 hours to ensure no embers remain).

• Wipe the inside of the iron/stainless steel tank with a dry cloth—avoid water (to prevent rust on iron tanks). For stainless steel tanks, a damp cloth can be used (dry thoroughly afterward).


Ordering & Customization

Is the wheel add-on mandatory?

No. Wheels are an optional upgrade (USD0.80 per unit). Without wheels, the vacuum has a stable base for stationary use (e.g., next to a fireplace). Container loading quantities remain the same whether wheels are added or not.

Can I order a custom tank size or power rating?

Currently, we offer standard tank sizes (12L–23L) and power ratings (700W–1200W) as listed. For bulk orders (500+ units), customizations may be available—contact our sales team at +86-13962147856 for details.

What is the lead time for bulk orders?

For standard models (e.g., MWA401C-15L-800W), lead time is 15–20 business days for 1*20FCL (1095pcs for 15L models). For custom orders, lead time may extend to 25–30 business days.


Performance & Compatibility

Will this vacuum work with my 110V electrical system (e.g., in the US)?

Yes. The vacuum is designed for 100-240V~ 50/60 Hz—compatible with both 110V (US, Canada) and 230V (Europe, Asia) electrical systems. No voltage converter is needed.

What is the maximum ash temperature the vacuum can handle?

The tank and accessories can safely handle ash up to 60°C (140°F). Avoid cleaning ash that is still hot (e.g., immediately after using a fireplace)—wait until it cools to room temperature.

Does the vacuum come with a warranty?

Yes. All 401 Series models include a 1-year manufacturer’s warranty (covers defects in materials and workmanship). For commercial use, extended warranties (2 years) are available for an additional fee—contact our service team at ronsa@wisemechanic.com for details.




Certificate Model Photo Technical Data Feature

Packing &

Container loading

Options
CE

MWA401C-*L-800W


* can be 15L,18L,20L

Mains: 230 V ~ 50 Hz

Input power: 800W (real 700W)

Vacuity: ≥14KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: HEPA

Power cord length:2m

15L:1pc/carton

size: 280*280*339mm

1095pcs/20FCL

2303pcs/40FCL

2639pcs/40HQ

If need wheels (3pcs), add USD0.80, container loading quantity is same

18L:1pc/carton

size: 282*280*407mm

908pcs/20FCL,

1908pcs/40FCL,

2132pcs/40HQ

20L:1pc/carton

size: 282*282*451mm

838pcs/20FCL

1762pcs/40FCL

1972pcs/40HQ

CE

MWA401C-*L-1000WA


* can be 15L,18L,20L

Mains: 230 V ~ 50 Hz

Input power: 1000W (real 800W)

Vacuity: ≥16KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: HEPA

Power cord length:2m

15L:1pc/carton

size: 280*280*339mm

1095pcs/20FCL

2303pcs/40FCL

2639pcs/40HQ

If need wheels (3pcs), add USD0.80, container loading quantity is same

18L:1pc/carton

size: 282*280*407mm

908pcs/20FCL,

1908pcs/40FCL,

2132pcs/40HQ

20L:1pc/carton

size: 282*282*451mm

838pcs/20FCL

1762pcs/40FCL

1972pcs/40HQ

CE

MWA401C-*L-1200WA


* can be 15L,18L,20L

Mains: 230 V ~ 50 Hz

Input power: 1200W(real 1000W)

Vacuity: ≥18KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: HEPA

Power cord length:2m

5L:1pc/carton

size: 280*280*339mm

1095pcs/20FCL

2303pcs/40FCL

2639pcs/40HQ

If need wheels (3pcs), add USD0.80, container loading quantity is same

18L:1pc/carton

size: 282*280*407mm

908pcs/20FCL,

1908pcs/40FCL,

2132pcs/40HQ

20L:1pc/carton

size: 282*282*451mm

838pcs/20FCL

1762pcs/40FCL

1972pcs/40HQ

CE

MWA401C-*L-1200WB


* can be 15L,18L,20L

Mains: 230 V ~ 50 Hz

Input power: 1200W(real 1200W)

Vacuity: ≥18KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: HEPA

Power cord length:2m

15L:1pc/carton

size: 280*280*339mm

1095pcs/20FCL

2303pcs/40FCL

2639pcs/40HQ

If need wheels (3pcs), add USD0.80, container loading quantity is same

18L:1pc/carton

size: 282*280*407mm

908pcs/20FCL,

1908pcs/40FCL,

2132pcs/40HQ

20L:1pc/carton

size: 282*282*451mm

838pcs/20FCL

1762pcs/40FCL

1972pcs/40HQ

GS & CE

MWA401G-*L-800W


* can be 15L,18L,20L

Mains: 230 V ~ 50 Hz

Input power: 800W (real 700W)

Vacuity: ≥15KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: Small metal filter basket + Dacron type filter bag

Power cord length:2m

15L:1pc/carton

size: 280*280*339mm

1095pcs/20FCL

2303pcs/40FCL

2639pcs/40HQ

If need wheels (3pcs), add USD0.80, container loading quantity is same

18L:1pc/carton

size: 282*280*407mm

908pcs/20FCL,

1908pcs/40FCL,

2132pcs/40HQ

20L:1pc/carton

size: 282*282*451mm

838pcs/20FCL

1762pcs/40FCL

1972pcs/40HQ

GS & CE

MWA401G-*L-1000WA


* can be 15L,18L,20L

Mains: 230 V ~ 50 Hz

Input power: 1000W (real 800W)

Vacuity: ≥16KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: Small metal filter basket + Dacron type filter bag

Power cord length:2m

15L:1pc/carton

size: 280*280*339mm

1095pcs/20FCL

2303pcs/40FCL

2639pcs/40HQ

If need wheels (3pcs), add USD0.80, container loading quantity is same

18L:1pc/carton

size: 282*280*407mm

908pcs/20FCL,

1908pcs/40FCL,

2132pcs/40HQ

20L:1pc/carton

size: 282*282*451mm

838pcs/20FCL

1762pcs/40FCL

1972pcs/40HQ

GS & CE

MWA401G-*L-1200WA


* can be 15L,18L,20L

Mains: 230 V ~ 50 Hz

Input power: 1200W (real 1000W)

Vacuity: ≥18KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter:Small metal filter basket + Dacron type filter bag

Power cord length:2m

15L:1pc/carton

size: 280*280*339mm

1095pcs/20FCL

2303pcs/40FCL

2639pcs/40HQ

If need wheels (3pcs), add USD0.80, container loading quantity is same

18L:1pc/carton

size: 282*280*407mm

908pcs/20FCL,

1908pcs/40FCL,

2132pcs/40HQ

20L:1pc/carton

size: 282*282*451mm

838pcs/20FCL

1762pcs/40FCL

1972pcs/40HQ

GS & CE

MWA401G-*L-1200WB


* can be 15L,18L,20L

Mains: 230 V ~ 50 Hz

Input power: 1200W (real 1200W)

Vacuity: ≥18KPa

Suction hose diameter: 30mm

Suction hose length: 1m

Aluminum tube:200mm

Iron tank with black color

Thickness:0.4mm

Filter: Small metal filter basket + Dacron type filter bag

Power cord length:2m

15L:1pc/carton

size: 280*280*339mm

1095pcs/20FCL

2303pcs/40FCL

2639pcs/40HQ

If need wheels (3pcs), add USD0.80, container loading quantity is same

18L:1pc/carton

size: 282*280*407mm

908pcs/20FCL,

1908pcs/40FCL,

2132pcs/40HQ

20L:1pc/carton

size: 282*282*451mm

838pcs/20FCL

1762pcs/40FCL

1972pcs/40HQ
